Product Details

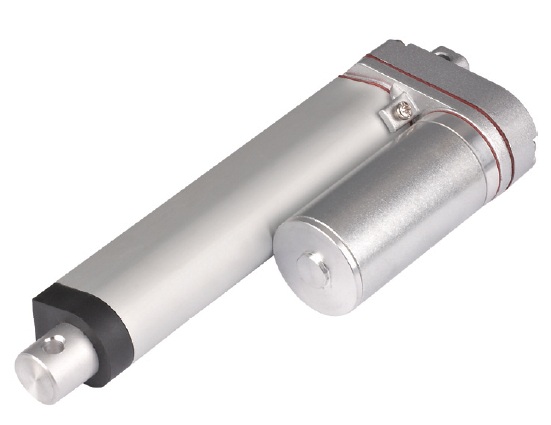

Model: ZG758
Color: Black/Silver
Input Volatge：12V/24V/36V/48V DC
Minimum Mounting Distance：S+100mm 标准Standard
Limit Switches：Internal pre installed.Operating Temperature：-10~40℃
IP Grade：IP54
Operating Frequency：S2-10minSpecifications: Voltage(V) DC12V No-Load Speed(mm/s) 1 3 7 10 14 20 23 30 42 80 Load Force(N) 200 300 750 500 400 250 250 200 125 60 Stroke (mm) From 20 to 800 per your requirement. Voltage(V) DC24V No-Load Speed(mm/s) 1 3 7 10 14 20 23 30 42 80 Load Force(N) 200 600 750 500 400 250 250 200 125 60 Stroke (mm) From 20 to 800 per your requirement. Voltage(V) DC36V No-Load Speed(mm/s) 1 7 10 14 20 Load Force(N) 200 750 500 400 250 Stroke (mm) From 20 to 800 per your requirement. Voltage(V) DC48V No-Load Speed(mm/s) 1 7 10 14 20 Load Force(N) 200 750 500 400 250 Stroke (mm)
From 20 to 800 per your requirement.
Outline Drawing: (Unit: mm)
