• Product Details

    Model: ZWL5865F390

    Motor Type: PMDC Brushed Motor

    Gearbox Type: Worm Gearbox

    Mechnical Features:

    Housing material: Zinc-Alloy

    Bearing type: Ball bearing

    Radial Force: 8 Kgf Max.

    Axial Force: 5 Kgf Max.

    Max. Pressing Axial Force: 20 Kgf

    Axial Play: 0.5mm Max.

    Radial Play: 0.1mm Max.

    Gearmotor Specification:


    Voltage Rated VoltageNo load SpeedOn load SpeedOn load TorqueOn load CurrentOn load PowerStall TorqueStall Current
    VVrpmrpmkgf.cmAWkgf.cmA
    8-12880683.51.52166.4

    Applications eg.: Smart Doorlock

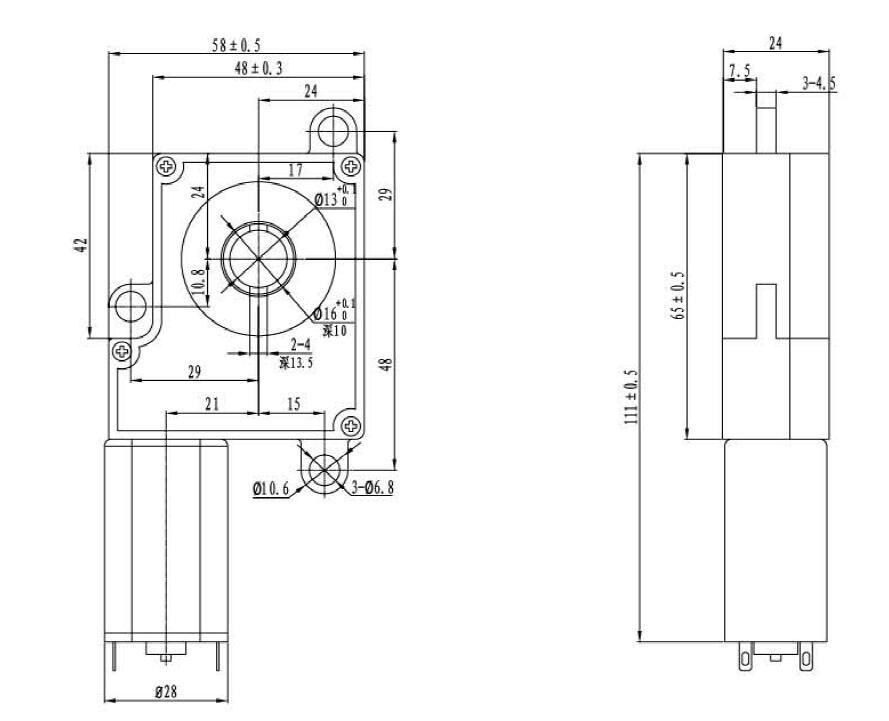

  • Outline Drawing

    Dimension(mm)

  • DataSheet Download

  • Packing Details

    Standard Exporting Packing:

    50PCS/Carton

    G.W: 17~18Kgs/Carton

    Carton Size: 36x33x28CM

    36 Cartons/Pallet: 1200mm x1000mm x1270mm


ZWL5865F390-1

Model: ZWL5865F390, Voltage: 8VDC, Speed: 68 rpm, Motor Type: PMDC Brushed Motor, Gearbox Type: Worm Gearbox, Applications: Smart Doorlock
