• Product Details

    Model: 14GA-N20

    Voltage: 3.0V~12VDC

    Motor type: N20 Brushed DC Motor

    Gearbox Diameter: 14mm

    Gearbox type: Spur metal Gearbox

    Shaft length options: 4.4mm/10mm


    DC Gearmotor | Planetary Gearbox

    Other specifications are able to be customized per your request.

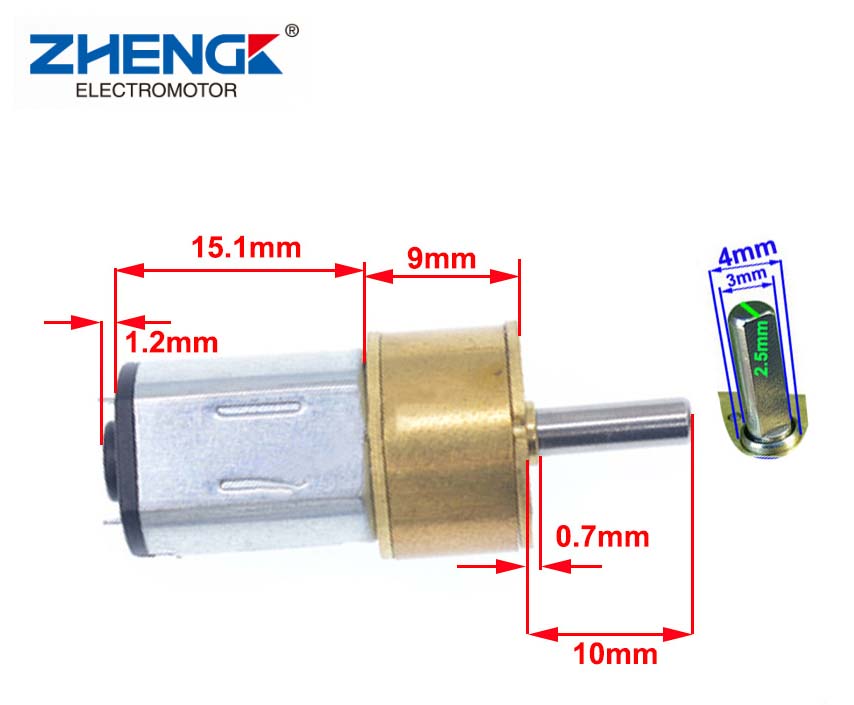

  • Outline Drawing

    Dimension(mm):





  • DataSheet Download

  • Packing Details

    Standard Exporting Packing:

    1000PCS/Carton

    G.W: 11.5Kgs/Carton

    Carton Size: 28x33x28CM

    36 Cartons/Pallet: 1000mm x1000mm x1270mm


14mm Diameter Gear Motor-14GA-N20

Model: 14GA-N20 Voltage: 3.0V~12VDC Motor type: N20 Brushed DC Motor Gearbox Diameter: 14mm Gearbox type: Spur metal Gearbox Shaft length options: 4.4mm/10mm Applications like Smartlock, etc.
