• Product Details


    Model: ZGB60FM-G

    Gearbox Diameter:60mm

    Gearbox type: Spur Metal Gearbox

    Bearing: Ball Bearing

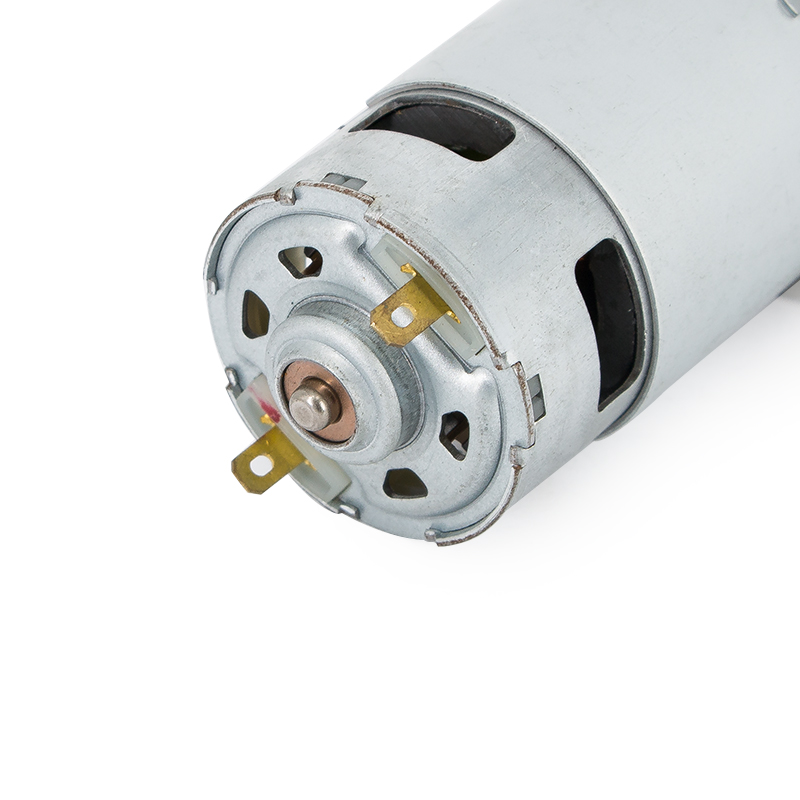

    Motor type: RS775 DC Brushed Motor

    Voltage: 12V~24VDC

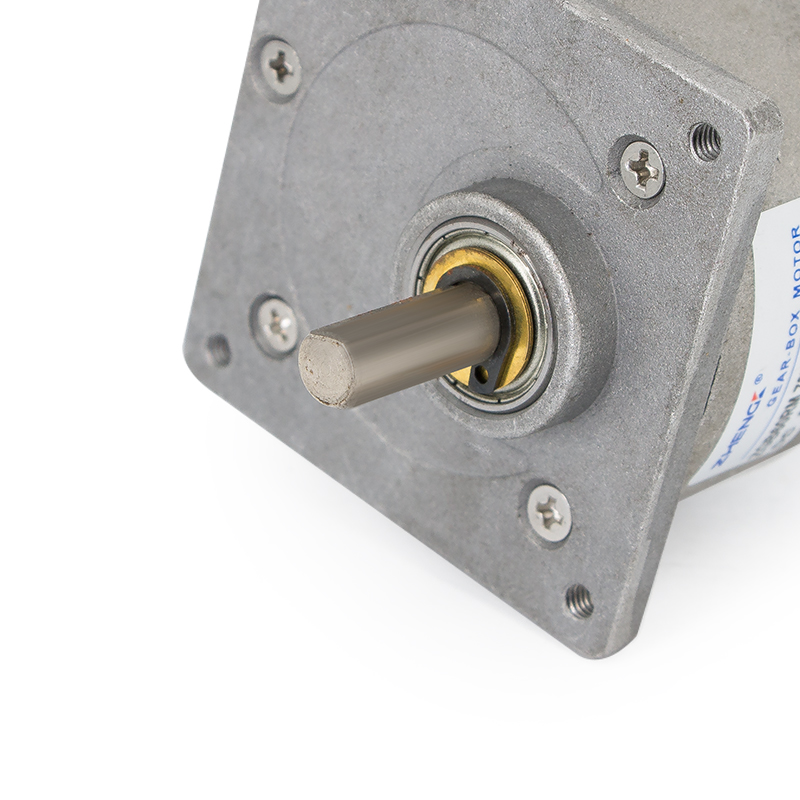

    Eccentric Shaft

    Square Flange

    Output Power: 10W~30W

    DC Gearmotor | Planetary Gearbox

    Application eg.: Industrial Dosing system

  • Outline Drawing

    Dimension(mm):

    DC Gearmotor | Planetary Gearbox


  • DataSheet Download

  • Packing Details

    Standard Exporting Packing:

    40PCS/Carton

    G.W: 21~23Kgs/Carton

    Carton Size: 36x33x38CM

    36 Cartons/Pallet: 1200mm x 1000mm  x1270mm

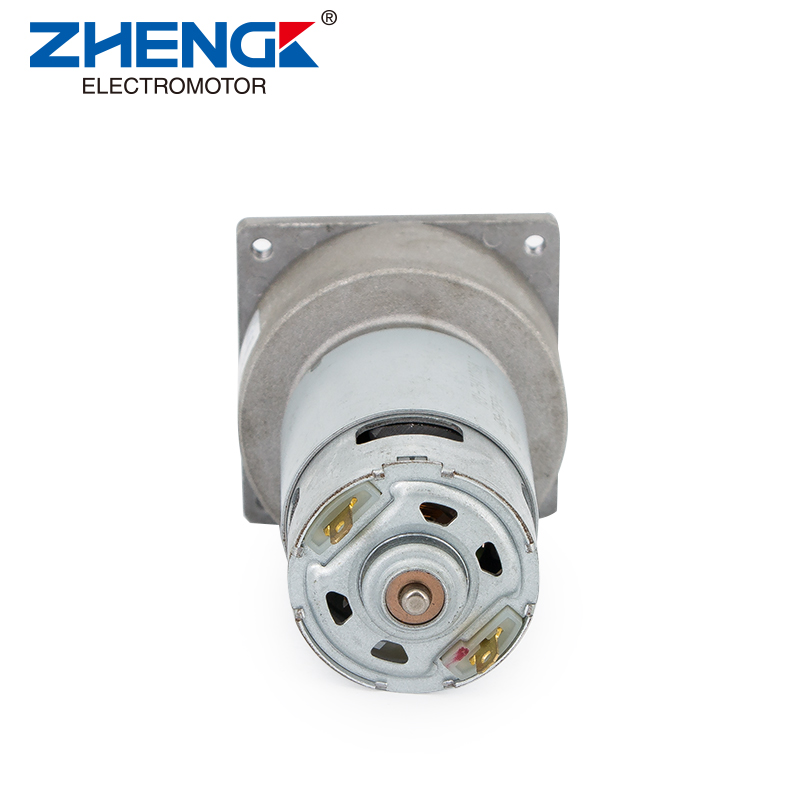

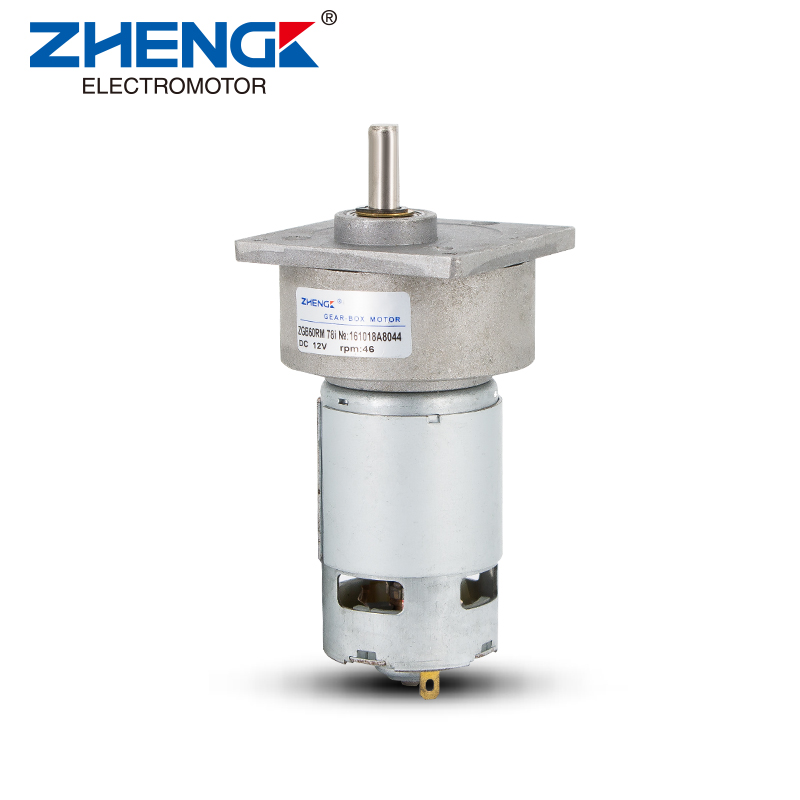

DC Brushed Motor RS775-D60mm Gearhead-Eccentric Shaft-Square Flange-ZGB60FM-G

Model: ZGB60FM-G, Gearbox Diameter:60mm, Gearbox type: Spur Metal Gearbox, Bearing: Ball Bearing, Motor type: RS775 DC Brushed Motor, Voltage: 12V~24VDC, Eccentric Shaft, Square Flange, Output Power: 10W~30W
