• Product Details

    Model: ZYTD-60SRZ-R1

    Motor Diameter: 60mm

    Motor type: PMDC Brushed motor

    Bearing: Ball Bearing

    Voltage: 12V~36VDC

    Speed:2000rpm~7000rpm

    Output Power: 20~40W

    DC Gearmotor | Planetary Gearbox

    Applications:

    Vending machines,Auto rear mirrors, scanning machines, Central lock,Smart House applications,Automatic Office applications, Medical instruments,linear actuators,Printers, Smart Windows etc.

  • Outline Drawing

    Dimension(mm)

    DC Gearmotor | Planetary Gearbox

  • DataSheet Download

  • Packing Details

    Standard Exporting Packing:

    24PCS/Carton

    G.W: 23Kgs/Carton

    Carton Size: 36x33x28CM

    36 Cartons/Pallet: 1200mm x 1000mm  x1270mm

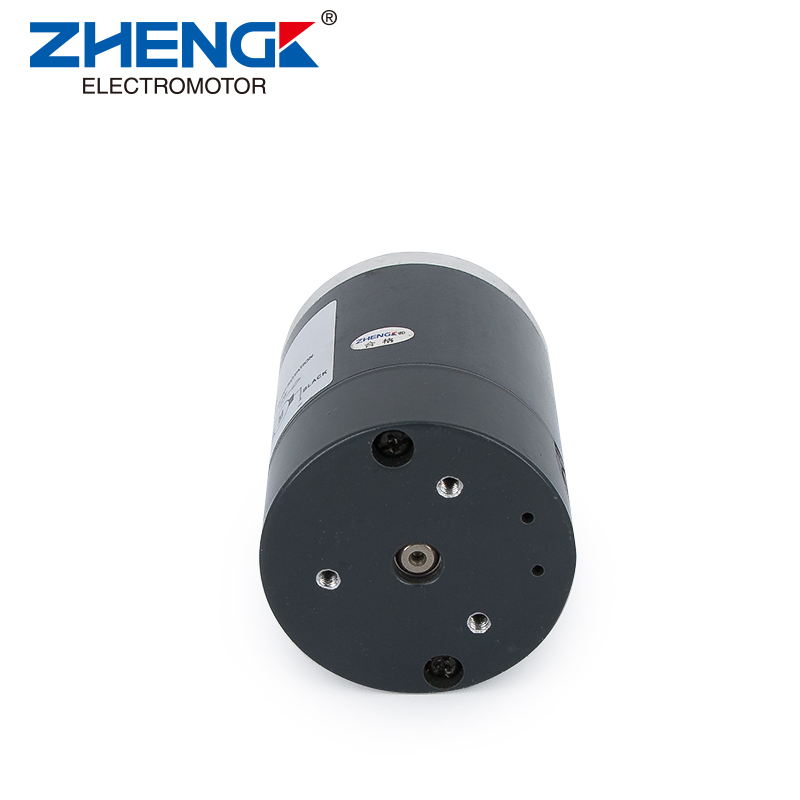

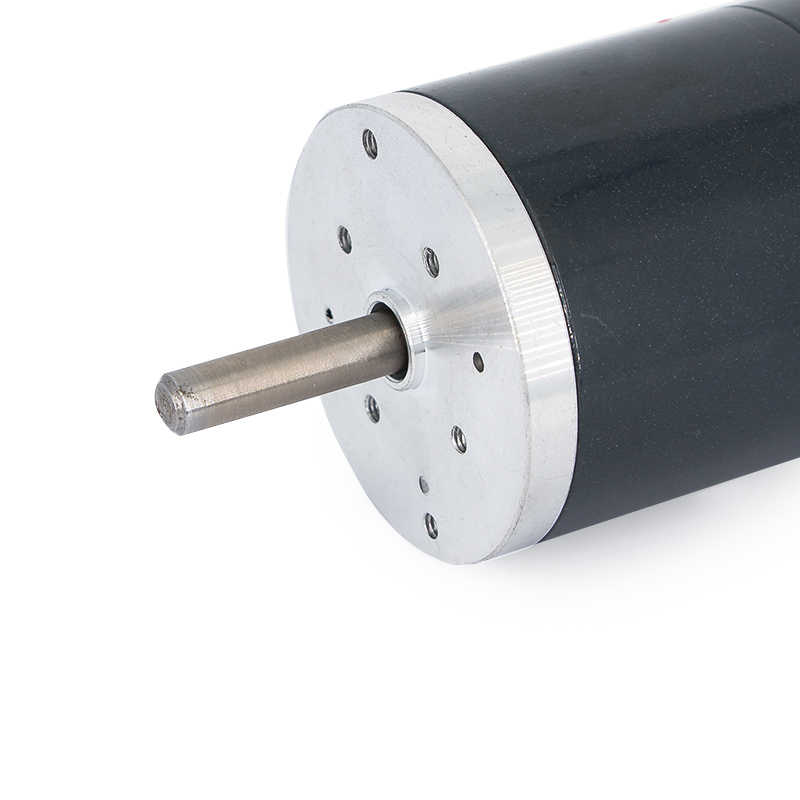

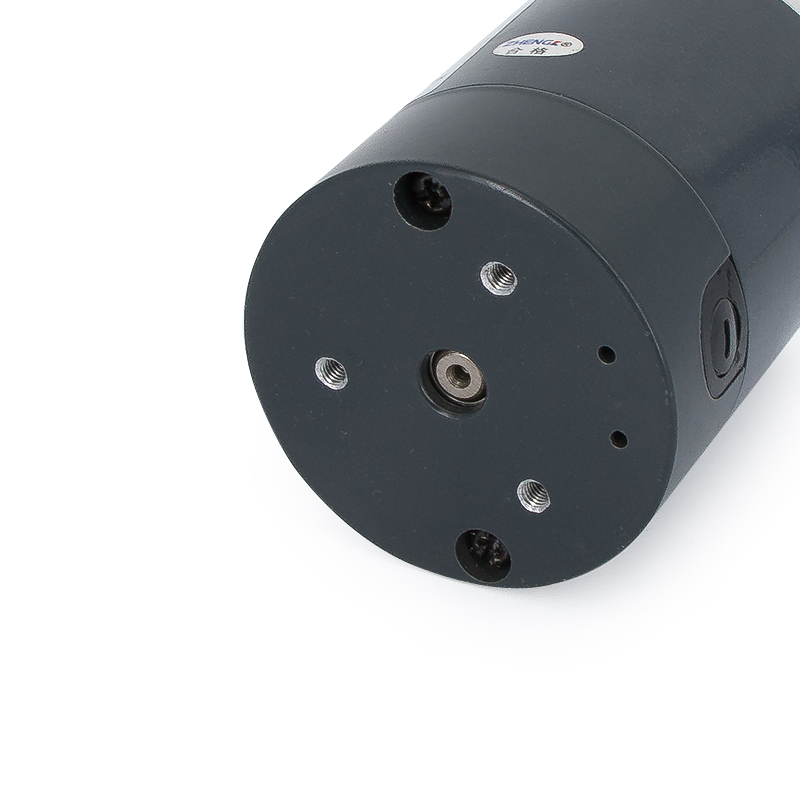

DC Brushed Motor-D60mm-ZYTD-60SRZ-R1

We manufacture small dc motors such like ZYTD Series, 12v, 24vdc available, 28mm body diameter to 90mm, Brushed and brushless motor, factory is located in China.
