BLDC Motor

IQC-ZHENGK

  • Product Details

    Model: ZGW996FEE

    Motor Type: ZYTD-38SRZ PMDC Brushed Motor

    Gearbox Type: Worm Gearbox

    Gearmotor Specification:

    DC Motor Reduction Ratio 1/135 1/202 1/451 1/972 1/1215
    38S-996(12V-3000R) Free Load Speed (rpm) 28 15 6.5 3 2.5
    Rate Load Speed (rpm) 22 12 5.5 2.5 2
    Rate Torque (Kgf.cm) 16 23.6 44.6 87 98
    38S-996(24V-5000R) Free Load Speed (rpm) 37 25 11 5 4
    Rate Load Speed (rpm) 29.5 20 9 4 3
    Rate Torque (Kgf.cm) 28 42 79 155 175
    Gearbox Length: N/A N/A N/A
    Gearbox Stage Nos.: 4 5 6

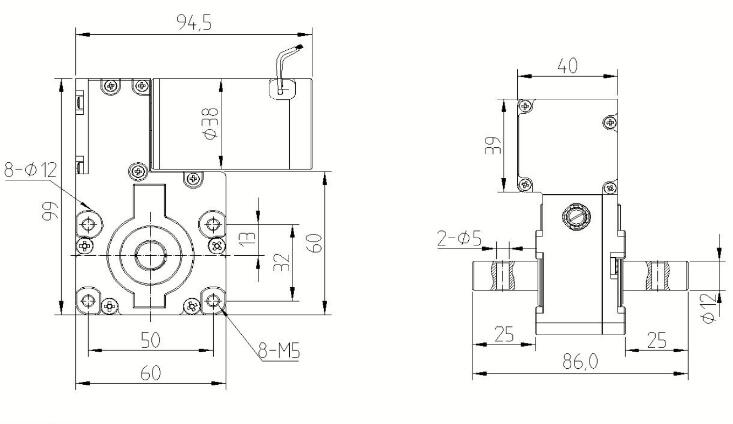

    Outline Drawing:


  • Outline Drawing

  • DataSheet Download

  • Packing Details

ZGW996FEE

Model: ZGW996FEE Motor Type: ZYTD-38SRZ PMDC Brushed Motor Gearbox Type: Worm Gearbox Voltage: 12~24V Ratio:1/135~1/1215 Power: 15W
